Shown with optional
rubber boot

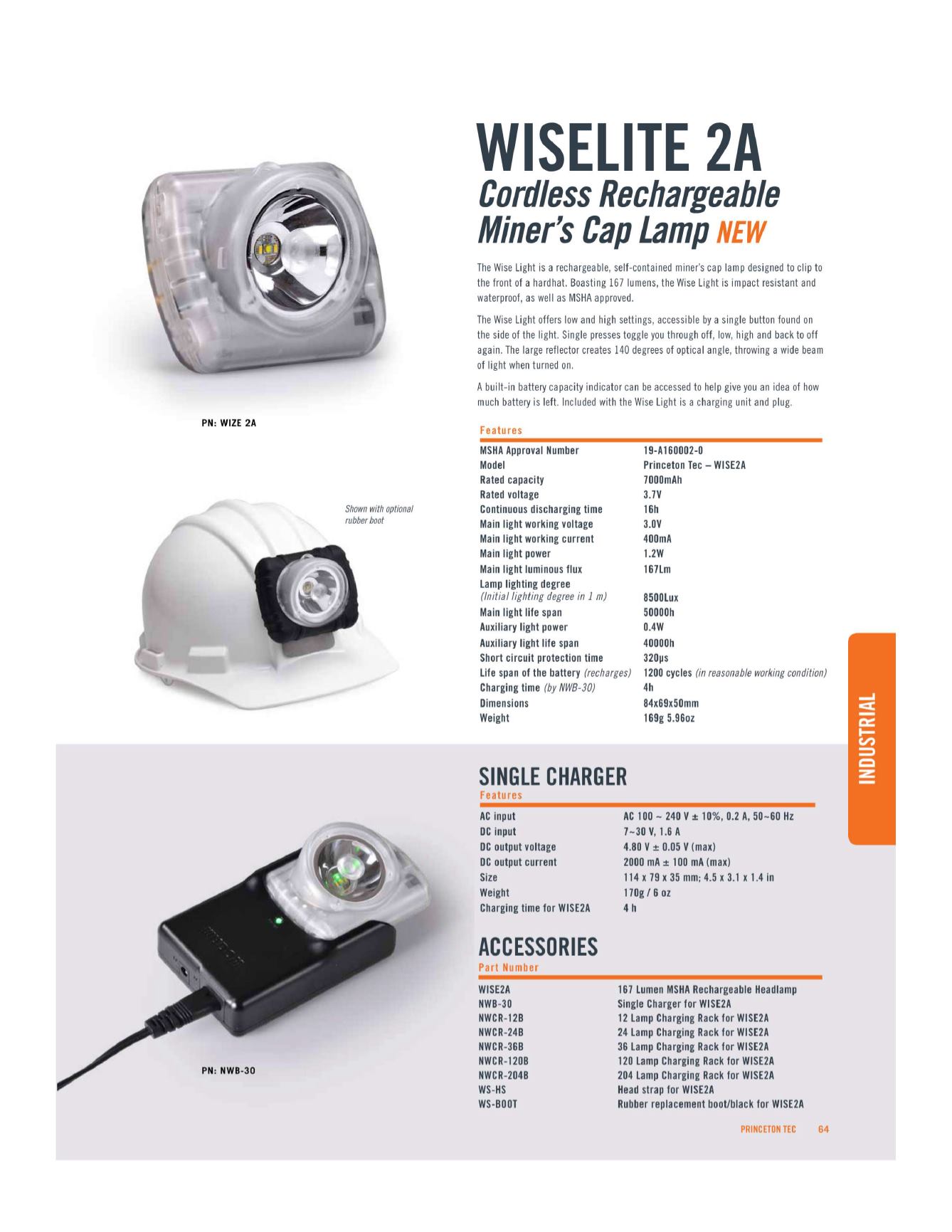

WISELITE 2A
Cordless
Rechargeable
Miner's Cap Lamp
NEW
The Wise Light is a rechargeable, self-contained miner's cap lamp designed to clip to
the front of a hardhat. Boasting 167 lumens, the Wise Light is impact resistant and
waterproof, as well as MSHA approved.
The Wise Light offers low and high settings, accessible bya single button found on
the side of the light. Single presses toggle you through off, low, high and back to off
again. The large reflector creates 140 degrees of optical angle, throwing a wide beam
of light when turned on.
A built-in battery capacity indicator can beaccessed to help give you an idea of how
much battery is left. Included with the Wise Light is a charging unit and plug.
Features
MSHA Approval Number
19-A160002-0
Model
Princeton Tec - WISE2A
Rated capacity
7000mAh
Rated voltage
3.7V
Continuous discharging time
16h
Main light working voltage
3.0V
Main light working current
400mA
Main light power
1.2W
Main light luminous flux
167Lm
Lamp lighting degree
(Initial lighting degree in 1 m)
8500Lux
Main light life span
50000h
Auxiliary light power
0.4W
Auxiliary light life span
40000h
Short circuit protection time
320us
Life span of the battery
(recharges)
1200 cycles
(inreasonable working conditio
Charging time
(byNWB-30)
4h
Dimensions
84x69x50mm
Weight
169g 5.96oz
SINGLE CHARGER
Features
AC input
AC 100 - 240 V ± 10%, 0.2A, 50-60 Hz
DC input
7-30 V, 1.6 A
DC output voltage
4.80 V ± 0.05 V (max)
DC output current
2000 mA ± 100 mA (max)
Size
114 x 79 x 35 mm; 4.5 x 3.1 x 1.4 in
Weight
170g/6 oz
Charging time for WISE2A
4 h
ACCESSORIES
Part Number
WISE2A
167 Lumen MSHA Rechargeable Headlamp
NWB-30
Single Charger for WISE2A
NWCR-12B
12 Lamp Charging Rack for WISE2A
NWCR-24B
24 Lamp Charging Rack for WISE2A
NWCR-36B
36 Lamp Charging Rack for WISE2A
NWCR-120B
120 Lamp Charging Rack for WISE2A
NWCR-204B
204 Lamp Charging Rack for WISE2A
WS-HS
Head strap for WISE2A
WS-B00T
Rubber replacement boot/black for WISE2A
PRINCETON TEC
6 4
