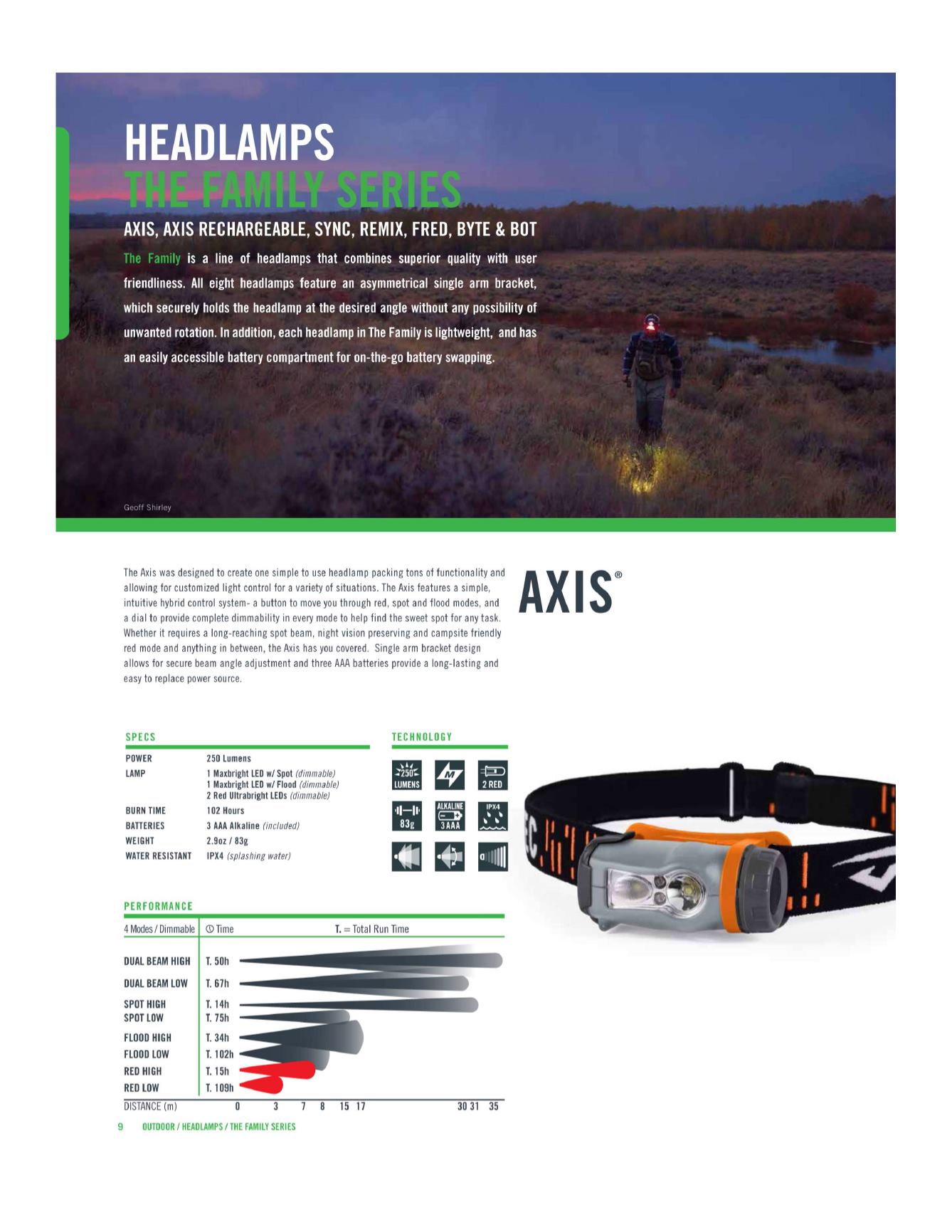

HEADLAMPS
fr+wVIILT
O L K I L
AXIS, AXIS RECHARGEABLE, SYNC, REMIX, FRED, BYTE & BOT
The Family
is a line of headlamps that combines superior quality with user
friendliness. All eight headlamps feature an asymmetrical single arm bracket,
which securely holds the headlamp at the desired angle without any possibility of
unwanted rotation. In addition, each headlamp in The Family is lightweight, and has
an easily accessible battery compartment for on-the-go battery swapping.
Geoff Shirley
The Axis was designed to create onesimple to use headlamp packing tons of functionality and
allowing for customized light control for a variety of situations. The Axis features a simple,
intuitive hybrid control system- a button to move you through red, spot and flood modes, and
a dial to provide complete dlmmability in every mode to help find the sweet spot for any task.
Whether it requires a long-reaching spot beam, night vision preserving and campsite friendly
red mode and anything in between, the Axis has you covered. Single arm bracket design
allows for secure beam angle adjustment and three AAA batteries provide a long-lasting and
easy to replace power source.
AXIS
SPECS
TECHNOLOGY
POWER
250 Lumens
LAMP
1 Maxbright LED w/ Spot
(dimmable)
1 Maxbright LED w/ Flood
(dimmable)
2
Red Ultrabright LEDs
(dimmable)
BURN TIME
102 Hours
BATTERIES
3 AAA Alkaline
(included)
WEIGHT
2.90Z /83g
WATER RESISTANT
IPX4
(splashing water)
PERFORMANCE
4 Modes/Dimmable
©Time
DUAL BEAM HIGH
T.50h
DUAL BEAM LOW
T.67h
SPOT HIGH
T. 14h
SPOT LOW
T.75h
FLOOD HIGH
T.34h
FLOOD LOW
T. 102h
RED HIGH
T. 15h
RED LOW
T. 109h
T. = Total RunTime
DISTANCE (m)
0
3
7
8
15 17
9
OUTDOOR / HEADLAMPS / THE FAMILY SERIES
30 31
35
